Medtrum Nano Cgm

Product Description:

Touchcare 14 slim CGM glucose sensor

• The Glucose Sensor (MD3026 for 14 days ) is inserted under the skin to measure your glucose level in interstitial fluid

• The Sensor (with Transmitter snapped in) is waterproof at 8 feet (2.5 meters) for 60 minutes (IPX8).

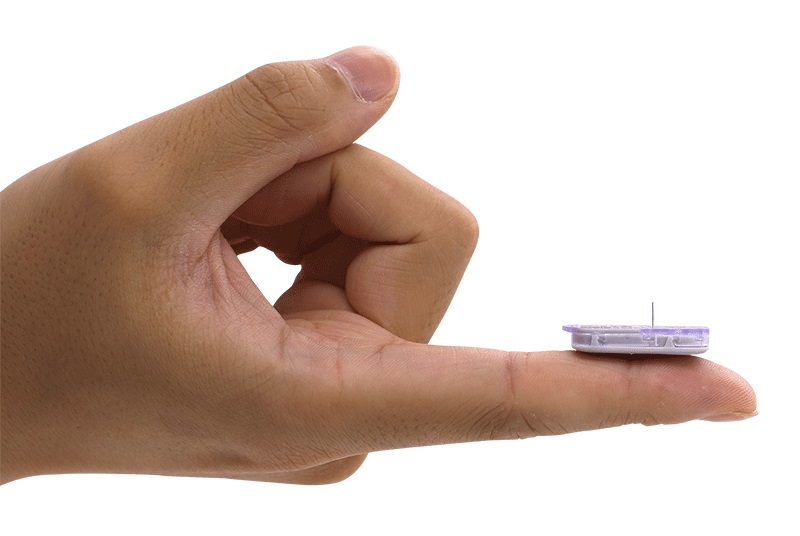

• Slim and Thin 14 days sensor

• Customizablealerts and alarms, warning before high or low .

• sends glucose readings every 2 minutes (720 per day) to your smart device without scanning.

• 14 day data storage, no data lost / gaps with auto
• recovery if separated from receiver .

• sensor require transmitter to be operated .

Select an insertion site

• Clean, minimal hair, no sweat, uncovered, enough fat (at least 5mm thick), away from navel and insulin infusion site.

• If you choose an insertion site on your abdomen or buttocks,

• apply the Sensor horizontally.
• If you choose an insertion site on your upper arm, apply the Sensor vertically.

Prepare the insertion site

• Clean the selected insertion area with rubbing alcohol and wait for the area to dry.
• The Sensor adhesive sticks better to dry skin

Place the Sensor

• Remove the two pieces of protective liners.
• insert Sensor needle and push until 10 second.
• Press the grey button on to insert simultaneously.

Take off the insertor

• connect Transmitter

• Put in the round part of the Transmitter first

• Snap the Transmitter into the Sensor support mount

• The indicator light will flash green 3 times first then another 6 times within one minute

• Note: Repetitive disconnecting and reconnecting may damage the sensor.

• Store the Sensor at temperatures between 2°C (36°F) and 30°C (86°F).

• Operating temperature of CGM system is between 5°C (41°F) and 40°C (104°F).
• Do NOT store the Transmitter connected with a Sensor or a USB charging cable. That may kill the transmitter battery.

• adhesive packing

• inserter device

• interstitialneedle
